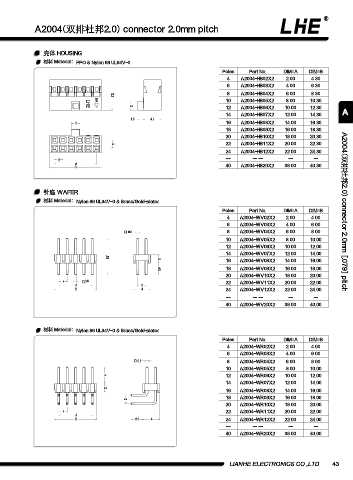

A2004(双排杜邦2.0) connector 2.0mm pitch

壳体 HOUSING
材料 Material：PPO & Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
4 A2004-HB02X2 2.00 4.30
6 A2004-HB03X2 4.00 6.30
8 A2004-HB04X2 6.00 8.30
7.2
10 A2004-HB05X2 8.00 10.30
2 12 A2004-HB06X2 10.00 12.30
14 A2004-HB07X2 12.00 14.30 A
1.5 4.1
2 16 A2004-HB08X2 14.00 16.30
18 A2004-HB09X2 16.00 18.30
20 A2004-HB10X2 18.00 20.30
22 A2004-HB11X2 20.00 22.30
2
24 A2004-HB12X2 22.00 24.30
-- -- -- -- --
2
A 40 A2004-HB20X2 38.00 40.30
B

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Gold-plated
Poles Part No. DIM=A DIM=B A2004(双排杜邦2.0) connector 2.0mm [.079] pitch
4 A2004-WV02X2 2.00 4.00
6 A2004-WV03X2 4.00 6.00
o 0.5 8 A2004-WV04X2 6.00 8.00
10 A2004-WV05X2 8.00 10.00
12 A2004-WV06X2 10.00 12.00
14 A2004-WV07X2 12.00 14.00
8.7
2
16 A2004-WV08X2 14.00 16.00
2.8 18 A2004-WV09X2 16.00 18.00
20 A2004-WV10X2 18.00 20.00
2 o 0.5 22 A2004-WV11X2 20.00 22.00
A 2
B 4 24 A2004-WV12X2 22.00 24.00
-- -- -- -- --
40 A2004-WV20X2 38.00 40.00

材料 Material：Nylon 66 UL94V-0 & Brass/Gold-plated
Poles Part No. DIM=A DIM=B
4 A2004-WR02X2 2.00 4.00
6 A2004-WR03X2 4.00 6.00
o 0.5 8 A2004-WR04X2 6.00 8.00
10 A2004-WR05X2 8.00 10.00
4 12 A2004-WR06X2 10.00 12.00
14 A2004-WR07X2 12.00 14.00
16 A2004-WR08X2 14.00 16.00
2
18 A2004-WR09X2 16.00 18.00
2
20 A2004-WR10X2 18.00 20.00
2 22 A2004-WR11X2 20.00 22.00
A
B 2.8 4 24 A2004-WR12X2 22.00 24.00
-- -- -- -- --
40 A2004-WR20X2 38.00 40.00

LIANHE ELECTRONICS CO.,LTD. 43
