P. 123
}

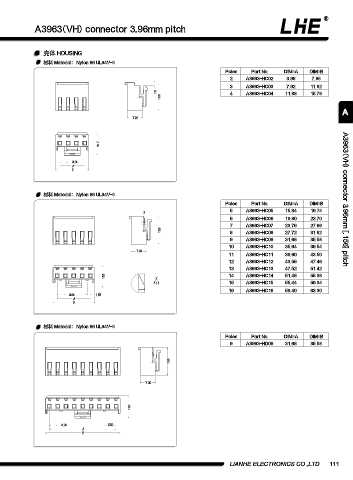

A3963(VH) connector 3.96mm pitch
壳体 HOUSING
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A3963-HC02 3.96 7.86
3 A3963-HC03 7.92 11.82
1.5 4 A3963-HC04 11.88 15.78
13.3
A
7.25
10.7
3.96
A
B
材料 Material：Nylon 66 UL94V-0 A3963(VH) connector 3.96mm [.156] pitch
Poles Part No. DIM=A DIM=B
5 A3963-HC05 15.84 19.74
Z
6 A3963-HC06 19.80 23.70
7 A3963-HC07 23.76 27.66
13.3 8 A3963-HC08 27.72 31.62
9 A3963-HC09 31.68 35.58
10 A3963-HC10 35.64 39.54
7.25
11 A3963-HC11 39.60 43.50
12 A3963-HC12 43.56 47.46
13 A3963-HC13 47.52 51.42
10.7 Z 14 A3963-HC14 51.48 55.38
5 : 1 15 A3963-HC15 55.44 59.34
16 A3963-HC16 59.40 63.30
3.96 1.57
A
B
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
9 A3963-HD09 31.68 35.58
13.3
7.25
10.7
3.96 5.53
A
B
LIANHE ELECTRONICS CO.,LTD. 111
