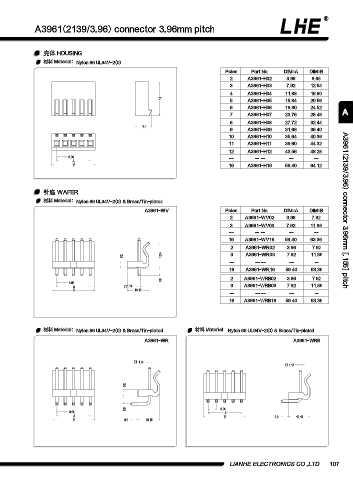

A3961(2139/3.96) connector 3.96mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 A3961-H02 3.96 8.68
3 A3961-H03 7.92 12.64
4 A3961-H04 11.88 16.60
16 5 A3961-H05 15.84 20.56
6 A3961-H06 19.80 24.52
7 A3961-H07 23.76 28.48 A
8 A3961-H08 27.72 32.44
7.8
9 A3961-H09 31.68 36.40
10 A3961-H10 35.64 40.36
11 A3961-H11 39.60 44.32
12 A3961-H12 43.56 48.28
3.96 -- -- -- -- --
A
B 16 A3961-H16 59.40 64.12

针座 WAFER
材料 Material：Nylon 66 UL94V-2(0) & Brass/Tin-plated
A3961-WV Poles Part No. DIM=A DIM=B A3961(2139/3.96) connector 3.96mm [.156] pitch
2 A3961-WV02 3.96 7.92
3 A3961-WV03 7.92 11.88
-- -- -- -- --
16 A3961-WV16 59.40 63.36
2 A3961-WR02 3.96 7.92
3.2 12.4 3 A3961-WR03 7.92 11.88
-- -- -- -- --
16 A3961-WR16 59.40 63.36
2 A3961-WRB02 3.96 7.92
3.96 3.6
A o 1.14 3 A3961-WRB03 7.92 11.88
B 10.15
-- -- -- -- --
16 A3961-WRB16 59.40 63.36

材料 Material：Nylon 66 UL94V-2(0) & Brass/Tin-plated 材料 Material：Nylon 66 UL94V-2(0) & Brass/Tin-plated
A3961-WR A3961-WRB

o 1.14
o 1.14

3.2

3.5 3.96
3.96 A
A B 3.6 10.15
B 3.6 10.15

LIANHE ELECTRONICS CO.,LTD. 107
