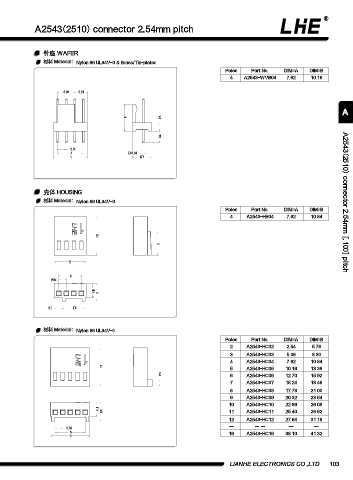

A2543(2510) connector 2.54mm pitch
针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
4 A2543-WVB04 7.62 10.16
5.08 3.81
A
8 2.5
3.4
2.54
A o 0.64
B 5.7
壳体 HOUSING
材料 Material：Nylon 66 UL94V-0 A2543(2510) connector 2.54mm [.100] pitch
Poles Part No. DIM=A DIM=B
4 A2543-HB04 7.62 10.84
13
8
B
A
2.54
4.8 6
2.9 7.6
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2543-HC02 2.54 5.76
3 A2543-HC03 5.08 8.30
4 A2543-HC04 7.62 10.84
13 5 A2543-HC05 10.16 13.38
2.3 6 A2543-HC06 12.70 15.92
7 A2543-HC07 15.24 18.46
8 A2543-HC08 17.78 21.00
9 A2543-HC09 20.32 23.54
10 A2543-HC10 22.86 26.08
4.8
6.5 11 A2543-HC11 25.40 28.62
12 A2543-HC12 27.94 31.16
-- -- -- -- --
2.54
A 16 A2543-HC16 38.10 41.32
B
