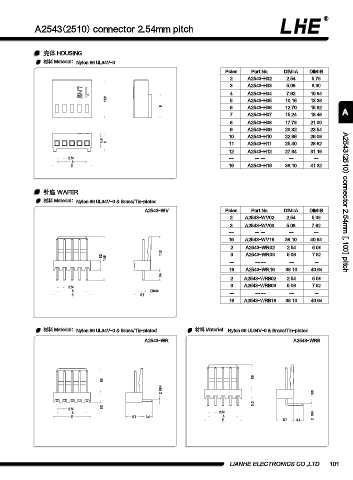

A2543(2510) connector 2.54mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 A2543-H02 2.54 5.76
3 A2543-H03 5.08 8.30
4 A2543-H04 7.62 10.84
12.9 5 A2543-H05 10.16 13.38
6 A2543-H06 12.70 15.92
8
7 A2543-H07 15.24 18.46 A
8 A2543-H08 17.78 21.00
9 A2543-H09 20.32 23.54
10 A2543-H10 22.86 26.08
4.8 6 11 A2543-H11 25.40 28.62
12 A2543-H12 27.94 31.16
2.54 -- -- -- -- --
A
B 16 A2543-H16 38.10 41.32

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2543(2510) connector 2.54mm [.100] pitch
A2543-WV Poles Part No. DIM=A DIM=B
2 A2543-WV02 2.54 5.08
3 A2543-WV03 5.08 7.62
-- -- -- -- --
16 A2543-WV16 38.10 40.64
2 A2543-WR02 2.54 5.08
11.5
3.2 3 A2543-WR03 5.08 7.62
14.9
-- -- -- -- --
16 A2543-WR16 38.10 40.64
3.4
2 A2543-WRB02 2.54 5.08
3 A2543-WRB03 5.08 7.62
2.54
A o 0.64
B 5.7 -- -- -- -- --
16 A2543-WRB16 38.10 40.64

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
A2543-WR A2543-WRB

8.3
8.3
0.64
o 1.65
3.2
2.54 3.2
A 2.54 0.64
B 5.7 3.4 A o
B 5.7 3.4

LIANHE ELECTRONICS CO.,LTD. 101
