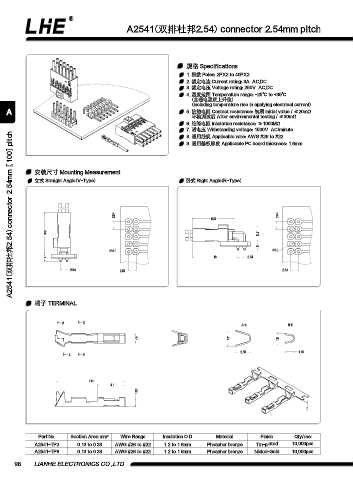

A2541(双排杜邦2.54) connector 2.54mm pitch

规格 Specifications
1. 极数 Poles: 2PX2 to 40PX2
2. 额定电流 Current rating: 3A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +95℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
A2541(双排杜邦2.54) connector 2.54mm [.100] pitch
8. 适用线规 Applicable wire: AWG #26 to #22
9. 适用基板厚度 Applicable PC board thickness: 1.6mm

安装尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

2.54 16.5 2.54

16.5 6.7

3
n0.9 n0.9
18 2.54
3
2.54 2.54 2.54

端子 TERMINAL

A B
A-A B-B
1.6 2.7 1.6

2.55 1.65
A B

11.6
4.6
1.55

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2541-TP2 0.13 to 0.33 AWG #26 to #22 1.2 to 1.6mm Phosphor bronze Tin-plated 10,000pcs
A2541-TP8 0.13 to 0.33 AWG #26 to #22 1.2 to 1.6mm Phosphor bronze Nickel-Gold 10,000pcs
