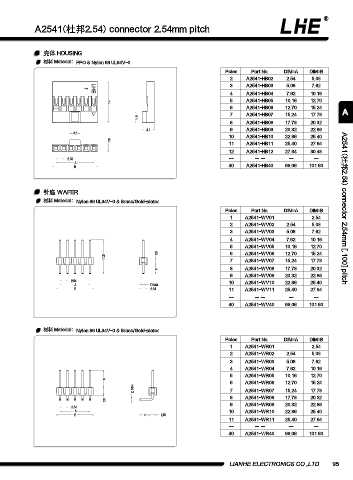

A2541(杜邦2.54) connector 2.54mm pitch

壳体 HOUSING
材料 Material：PPO & Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2541-HB02 2.54 5.08
3 A2541-HB03 5.08 7.62
4 A2541-HB04 7.62 10.16
5 A2541-HB05 10.16 12.70
14
6 A2541-HB06 12.70 15.24
7 A2541-HB07 15.24 17.78 A
3.8
8 A2541-HB08 17.78 20.32
4.1 9 A2541-HB09 20.32 22.86
3.5
10 A2541-HB10 22.86 25.40
2.6
11 A2541-HB11 25.40 27.94
12 A2541-HB12 27.94 30.48
2.54 -- -- -- -- --
A
B 40 A2541-HB40 99.06 101.60

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Gold-plated
Poles Part No. DIM=A DIM=B A2541(杜邦2.54) connector 2.54mm [.100] pitch
1 A2541-WV01 2.54
2 A2541-WV02 2.54 5.08
3 A2541-WV03 5.08 7.62
4 A2541-WV04 7.62 10.16
5 A2541-WV05 10.16 12.70
2.5 6 A2541-WV06 12.70 15.24
11.5
7 A2541-WV07 15.24 17.78
8 A2541-WV08 17.78 20.32
3
9 A2541-WV09 20.32 22.86
2.54
A o 0.64 10 A2541-WV10 22.86 25.40
B 2.54 11 A2541-WV11 25.40 27.94
-- -- -- -- --
40 A2541-WV40 99.06 101.60

材料 Material：Nylon 66 UL94V-0 & Brass/Gold-plated
Poles Part No. DIM=A DIM=B
1 A2541-WR01 2.54
2 A2541-WR02 2.54 5.08
3 A2541-WR03 5.08 7.62
4 A2541-WR04 7.62 10.16
5 A2541-WR05 10.16 12.70
6
6 A2541-WR06 12.70 15.24
0.64
o 7 A2541-WR07 15.24 17.78
8 A2541-WR08 17.78 20.32
2.5
9 A2541-WR09 20.32 22.86
2.54
A 10 A2541-WR10 22.86 25.40
B 3 2.54
11 A2541-WR11 25.40 27.94
-- -- -- -- --
40 A2541-WR40 99.06 101.60
