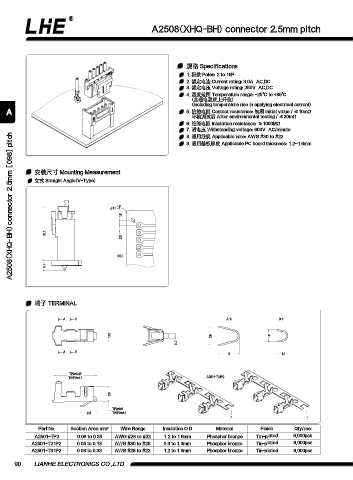

A2508(XHQ-BH) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 800V AC/minute
A2508(XHQ-BH) connector 2.5mm [.098] pitch
8. 适用线规 Applicable wire: AWG #30 to #22
9. 适用基板厚度 Applicable PC board thickness: 1.2~1.6mm

安装尺寸 Mounting Measurement
立式 Straight Angle(V-Type)

+ 0.2
n 1.1 - 0
1.6

18.5
2.5

n0.9
3.4

端子 TERMINAL

A B A-A B-B

1.85 2.9 1.8
0.7
A B 3 1.5

TP2=6.45
T21P2= 6.3 A2501-T31P2

2.3

TP2=0.9
2.4 T21P2= 0.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2501-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 6,000pcs
A2501-T21P2 0.05 to 0.13 AWG #30 to #26 0.9 to 1.3mm Phosphor bronze Tin-plated 6,000pcs
A2501-T31P2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 6,000pcs

90 LIANHE ELECTRONICS CO.,LTD.
