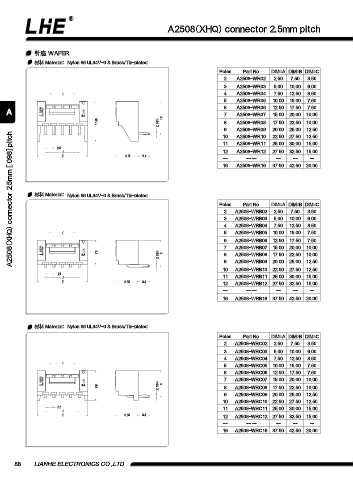

A2508(XHQ) connector 2.5mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
2 A2508-WR02 2.50 7.50 3.50
3 A2508-WR03 5.00 10.00 6.00
C 4 A2508-WR04 7.50 12.50 8.50
5 A2508-WR05 10.00 15.00 7.50
6 A2508-WR06 12.50 17.50 7.50
A 7 A2508-WR07 15.00 20.00 10.00
10
11.95 0.64 8 A2508-WR08 17.50 22.50 10.00
o
9 A2508-WR09 20.00 25.00 12.50
A2508(XHQ) connector 2.5mm [.098] pitch
10 A2508-WR10 22.50 27.50 12.50
11 A2508-WR11 25.00 30.00 15.00
2.5
A 12 A2508-WR12 27.50 32.50 15.00
B 6.65 3.4
- - - - - - - - - - - -
16 A2508-WR16 37.50 42.50 20.00

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated

Poles Part No. DIM=A DIM=B DIM=C
2 A2508-WRB02 2.50 7.50 3.50
3 A2508-WRB03 5.00 10.00 6.00
4 A2508-WRB04 7.50 12.50 8.50
C 5 A2508-WRB05 10.00 15.00 7.50
6 A2508-WRB06 12.50 17.50 7.50
7 A2508-WRB07 15.00 20.00 10.00
7.3 0.64 8 8 A2508-WRB08 17.50 22.50 10.00
o
9 A2508-WRB09 20.00 25.00 12.50
10 A2508-WRB10 22.50 27.50 12.50
2.5
A 11 A2508-WRB11 25.00 30.00 15.00
B 6.65 3.4 12 A2508-WRB12 27.50 32.50 15.00
- - - - - - - - - - - -
16 A2508-WRB16 37.50 42.50 20.00

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
2 A2508-WRC02 2.50 7.50 3.50
3 A2508-WRC03 5.00 10.00 6.00
4 A2508-WRC04 7.50 12.50 8.50
C
5 A2508-WRC05 10.00 15.00 7.50
6 A2508-WRC06 12.50 17.50 7.50
7 A2508-WRC07 15.00 20.00 10.00
8.9 0.64 8 8 A2508-WRC08 17.50 22.50 10.00
o
9 A2508-WRC09 20.00 25.00 12.50
10 A2508-WRC10 22.50 27.50 12.50
2.5 11 A2508-WRC11 25.00 30.00 15.00
A
B 6.65 3.4 12 A2508-WRC12 27.50 32.50 15.00
- - - - - - - - - - - -
16 A2508-WRC16 37.50 42.50 20.00
