P. 97
}

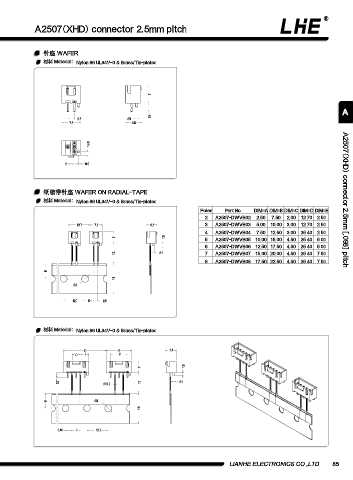

A2507(XHD) connector 2.5mm pitch
针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
7
A
2.5 n 1 3.4
7.5 6.5
1.45
2 0.9
纸编带针座 WAFER ON RADIAL-TAPE
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2507(XHD) connector 2.5mm [.098] pitch
Poles Part No. DIM=A DIM=B DIM=C DIM=D DIM=E
2 A2507-DWVB02 2.50 7.50 2.00 12.70 2.50
12.7 7.5 6.5 3 A2507-DWVB03 5.00 10.00 3.00 12.70 2.50
4 A2507-DWVB04 7.50 12.50 3.00 25.40 2.50
1.5
7 5 A2507-DWVB05 10.00 15.00 4.50 25.40 5.00
6 A2507-DWVB06 12.50 17.50 4.50 25.40 5.00
12 n 1 7 A2507-DWVB07 15.00 20.00 4.50 25.40 7.50
8 A2507-DWVB08 17.50 22.50 4.50 25.40 7.50
9
18
n4
12.7 5.1 2.5
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
D B 6.5
C E A
7 1.5
2.7 n0.7 12 n 1
9 n4
18
3.85 5 12.7
LIANHE ELECTRONICS CO.,LTD. 85
