Page 94 - 浙江联和电子有限公司目录 2020-04-20

}

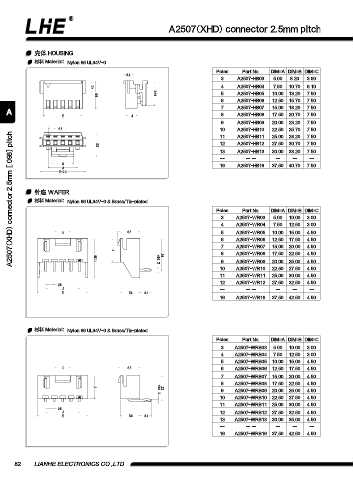

A2507(XHD) connector 2.5mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B DIM=C
3.4
3 A2507-HB03 5.00 8.20 3.60
4.1 4 A2507-HB04 7.50 10.70 6.10
9.5 8.45 5 A2507-HB05 10.00 13.20 7.50
6 A2507-HB06 12.50 15.70 7.50
7 A2507-HB07 15.00 18.20 7.50
A
B 4 8 A2507-HB08 17.50 20.70 7.50
9 A2507-HB09 20.00 23.20 7.50
2.5 10 A2507-HB10 22.50 25.70 7.50
A2507(XHD) connector 2.5mm [.098] pitch
11 A2507-HB11 25.00 28.20 7.50
8.2 12 A2507-HB12 27.50 30.70 7.50
13 A2507-HB13 30.00 33.20 7.50
- - - - - - - - - - - -
C 16 A2507-HB16 37.50 40.70 7.50
A
B+2.3

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
3 A2507-WR03 5.00 10.00 3.00
4 A2507-WR04 7.50 12.50 3.00
C 6.5 5 A2507-WR05 10.00 15.00 4.50
6 A2507-WR06 12.50 17.50 4.50
7 A2507-WR07 15.00 20.00 4.50
7 8 A2507-WR08 17.50 22.50 4.50
11.65 0.64 o 9.7 9 A2507-WR09 20.00 25.00 4.50
10 A2507-WR10 22.50 27.50 4.50
11 A2507-WR11 25.00 30.00 4.50
12 A2507-WR12 27.50 32.50 4.50
2.5
A - - - - - - - - - - - -
B 5.8 3.4
16 A2507-WR16 37.50 42.50 4.50

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
3 A2507-WRB03 5.00 10.00 3.00
4 A2507-WRB04 7.50 12.50 3.00
5 A2507-WRB05 10.00 15.00 4.50
C 6.5 6 A2507-WRB06 12.50 17.50 4.50
7 A2507-WRB07 15.00 20.00 4.50
8 A2507-WRB08 17.50 22.50 4.50
7 0.64 7.7
o 9 A2507-WRB09 20.00 25.00 4.50
10 A2507-WRB10 22.50 27.50 4.50
11 A2507-WRB11 25.00 30.00 4.50
2.5
A 12 A2507-WRB12 27.50 32.50 4.50
B 5.8 3.4
13 A2507-WRB13 30.00 35.00 4.50
- - - - - - - - - - - -
16 A2507-WRB16 37.50 42.50 4.50

82 LIANHE ELECTRONICS CO.,LTD.
