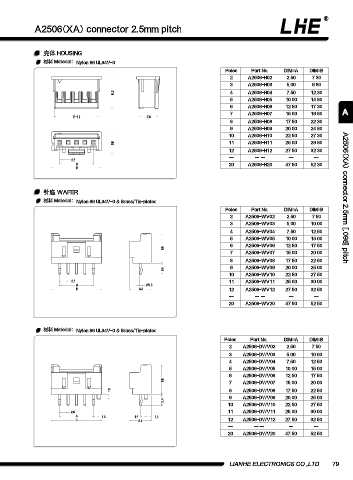

A2506(XA) connector 2.5mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 A2506-H02 2.50 7.30
3 A2506-H03 5.00 9.80
9.5 4 A2506-H04 7.50 12.30
5 A2506-H05 10.00 14.80
6 A2506-H06 12.50 17.30
7 A2506-H07 15.00 19.80 A
B-1.7 5.8
8 A2506-H08 17.50 22.30
9 A2506-H09 20.00 24.80
10 A2506-H10 22.50 27.30
6.9 11 A2506-H11 25.00 29.80
12 A2506-H12 27.50 32.30
-- -- -- -- --
2.5
A 20 A2506-H20 47.50 52.30
B

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2506(XA) connector 2.5mm [.098] pitch
Poles Part No. DIM=A DIM=B
2 A2506-WV02 2.50 7.50
3 A2506-WV03 5.00 10.00
4 A2506-WV04 7.50 12.50
5 A2506-WV05 10.00 15.00
6 A2506-WV06 12.50 17.50
8.8
7 A2506-WV07 15.00 20.00
8 A2506-WV08 17.50 22.50
3.4 9 A2506-WV09 20.00 25.00
10 A2506-WV10 22.50 27.50
2.5 11 A2506-WV11 25.00 30.00
A Ø 0.6
B 6.4 12 A2506-WV12 27.50 32.50
-- -- -- -- --
20 A2506-WV20 47.50 52.50

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A2506-DWV02 2.50 7.50
3 A2506-DWV03 5.00 10.00
4 A2506-DWV04 7.50 12.50
5 A2506-DWV05 10.00 15.00
6 A2506-DWV06 12.50 17.50
8.8
7 A2506-DWV07 15.00 20.00
1.5 8 A2506-DWV08 17.50 22.50
9 A2506-DWV09 20.00 25.00
3.4
10 A2506-DWV10 22.50 27.50
2.5 11 A2506-DWV11 25.00 30.00
A 1.6 1.6 1.6
B 6.4 12 A2506-DWV12 27.50 32.50
-- -- -- -- --
20 A2506-DWV20 47.50 52.50

LIANHE ELECTRONICS CO.,LTD. 79
