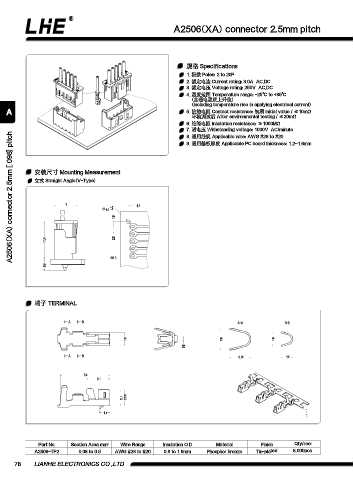

Page 90 - 浙江联和电子有限公司目录 2020-04-20

}
A2506(XA) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 20P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
A2506(XA) connector 2.5mm [.098] pitch
8. 适用线规 Applicable wire: AWG #28 to #20
9. 适用基板厚度 Applicable PC board thickness: 1.2~1.6mm

安装尺寸 Mounting Measurement
立式 Straight Angle(V-Type)

7 1.6
n 1.2 - 0 + 0.1
1.6

11.4 2.5

n0.9
3.4

端子 TERMINAL

A B A-A B-B

1.8 2.9 1.9
0.8
A B 2.85 1.5

6.6
3.1

2.1 2.25

1.4

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2506-TP2 0.08 to 0.5 AWG #28 to #20 0.8 to 1.9mm Phosphor bronze Tin-plated 8,000pcs
