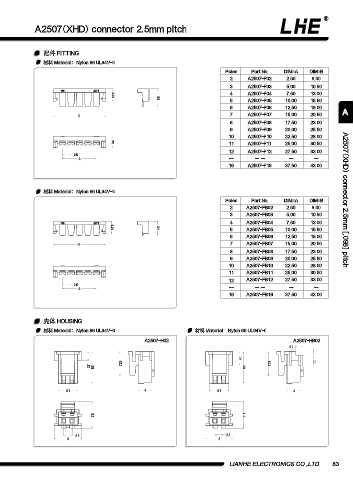

A2507(XHD) connector 2.5mm pitch
配件 FITTING
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2507-F02 2.50 8.00
3 A2507-F03 5.00 10.50
7.50
3.75 5.3 4 5 A2507-F04 10.00 13.00
15.50
A2507-F05
6 A2507-F06 12.50 18.00
7 A2507-F07 15.00 20.50 A
B
8 A2507-F08 17.50 23.00
9 A2507-F09 20.00 25.50
10 A2507-F10 22.50 28.00
3.4 11 A2507-F11 25.00 30.50
12 A2507-F12 27.50 33.00
2.5
A -- -- -- -- --
16 A2507-F16 37.50 43.00
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B A2507(XHD) connector 2.5mm [.098] pitch
2 A2507-FB02 2.50 8.00
3 A2507-FB03 5.00 10.50
4 A2507-FB04 7.50 13.00
3.75 4.2 5 A2507-FB05 10.00 15.50
6 A2507-FB06 12.50 18.00
B 7 A2507-FB07 15.00 20.50
8 A2507-FB08 17.50 23.00
9 A2507-FB09 20.00 25.50
10 A2507-FB10 22.50 28.00
11 A2507-FB11 25.00 30.50
12 A2507-FB12 27.50 33.00
2.5
A -- -- -- -- --
16 A2507-FB16 37.50 43.00
壳体 HOUSING
材料 Material：Nylon 66 UL94V-0 材料 Material：Nylon 66 UL94V-0
A2507-H02 A2507-HB02
2.2
4.1
2.7 7.25 7.25 1.1
9.5 9.5
5.7 4 5.7 4
7.8 7.8
2.5 2.5
8 8
