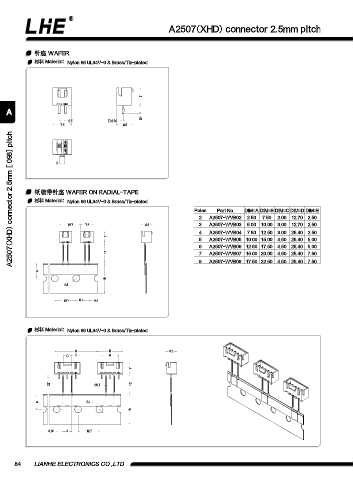

A2507(XHD) connector 2.5mm pitch
针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
7
A
2.5 o 0.64 3.4
7.5 6.5
A2507(XHD) connector 2.5mm [.098] pitch
2
纸编带针座 WAFER ON RADIAL-TAPE
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C DIM=D DIM=E
2 A2507-WVB02 2.50 7.50 2.00 12.70 2.50
12.7 7.5 6.5 3 A2507-WVB03 5.00 10.00 3.00 12.70 2.50
4 A2507-WVB04 7.50 12.50 3.00 25.40 2.50
5 A2507-WVB05 10.00 15.00 4.50 25.40 5.00
7
6 A2507-WVB06 12.50 17.50 4.50 25.40 5.00
12 7 A2507-WVB07 15.00 20.00 4.50 25.40 7.50
8 A2507-WVB08 17.50 22.50 4.50 25.40 7.50
9
18
n4
12.7 5.1 2.5
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
D B 6.5
C E A
7
2.7 n0.7 12
9 n4
18
3.85 5 12.7
