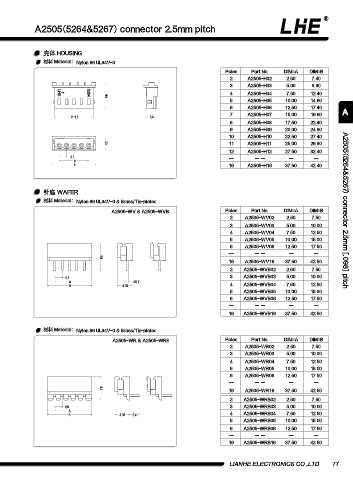

A2505(5264&5267) connector 2.5mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 A2505-H02 2.50 7.40
3 A2505-H03 5.00 9.90
4 A2505-H04 7.50 12.40
8.9
5 A2505-H05 10.00 14.90
6 A2505-H06 12.50 17.40
7 A2505-H07 15.00 19.90 A
B-1.6 3.3
8 A2505-H08 17.50 22.40
9 A2505-H09 20.00 24.90
10 A2505-H10 22.50 27.40
4.7 11 A2505-H11 25.00 29.90
12 A2505-H12 27.50 32.40
2.5 -- -- -- -- --
A
B 16 A2505-H16 37.50 42.40

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
A2505-WV & A2505-WVB Poles Part No. DIM=A DIM=B A2505(5264&5267) connector 2.5mm [.098] pitch
2 A2505-WV02 2.50 7.50
3 A2505-WV03 5.00 10.00
4 A2505-WV04 7.50 12.50
5 A2505-WV05 10.00 15.00
6 A2505-WV06 12.50 17.50
-- -- -- -- --
9.4
16 A2505-WV16 37.50 42.50
2 A2505-WVB02 2.50 7.50
2.5 3 A2505-WVB03 5.00 10.00
A n 0.7
B 4.95 4 A2505-WVB04 7.50 12.50
5 A2505-WVB05 10.00 15.00
6 A2505-WVB06 12.50 17.50
-- -- -- -- --
16 A2505-WVB16 37.50 42.50

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
A2505-WR & A2505-WRB Poles Part No. DIM=A DIM=B
2 A2505-WR02 2.50 7.50
3 A2505-WR03 5.00 10.00
4 A2505-WR04 7.50 12.50
5 A2505-WR05 10.00 15.00
6 A2505-WR06 12.50 17.50
-- -- -- -- --
7.9 16 A2505-WR16 37.50 42.50
2 A2505-WRB02 2.50 7.50
2.5 3 A2505-WRB03 5.00 10.00
A
B 4.95 3.4 4 A2505-WRB04 7.50 12.50
5 A2505-WRB05 10.00 15.00
6 A2505-WRB06 12.50 17.50
-- -- -- -- --
16 A2505-WRB16 37.50 42.50

LIANHE ELECTRONICS CO.,LTD. 77
