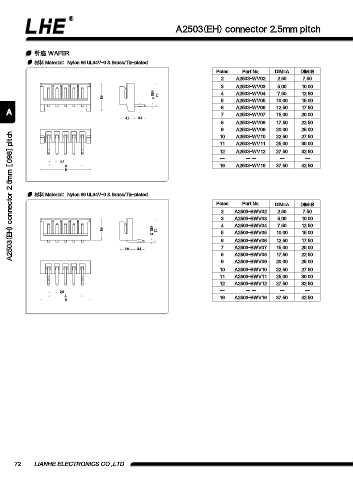

A2503(EH) connector 2.5mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A2503-WV02 2.50 7.50
3 A2503-WV03 5.00 10.00
0.64 7.1 4 A2503-WV04 7.50 12.50
8.4 o
5 A2503-WV05 10.00 15.00
6 A2503-WV06 12.50 17.50
A 7 A2503-WV07 15.00 20.00
4.2 3.4
8 A2503-WV08 17.50 22.50
9 A2503-WV09 20.00 25.00
A2503(EH) connector 2.5mm [.098] pitch
10 A2503-WV10 22.50 27.50
11 A2503-WV11 25.00 30.00
12 A2503-WV12 27.50 32.50
-- -- -- -- --
2.5
A 16 A2503-WV16 37.50 42.50
B

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated

Poles Part No. DIM=A DIM=B
2 A2503-BWV02 2.50 7.50
3 A2503-BWV03 5.00 10.00
4 A2503-BWV04 7.50 12.50
6.4 0.64 7.1
o 5 A2503-BWV05 10.00 15.00
6 A2503-BWV06 12.50 17.50
7 A2503-BWV07 15.00 20.00
3.9 3.4
8 A2503-BWV08 17.50 22.50
9 A2503-BWV09 20.00 25.00
10 A2503-BWV10 22.50 27.50
11 A2503-BWV11 25.00 30.00
12 A2503-BWV12 27.50 32.50
-- -- -- -- --
2.5
A
B 16 A2503-BWV16 37.50 42.50

72 LIANHE ELECTRONICS CO.,LTD.
