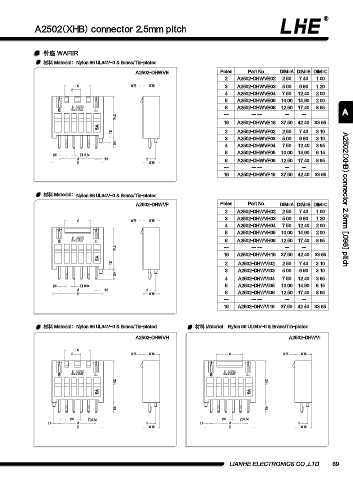

Page 81 - 浙江联和电子有限公司目录 2020-04-20

}
A2502(XHB) connector 2.5mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
A2502-DHWVE Poles Part No. DIM=A DIM=B DIM=C
2 A2502-DHWVE02 2.50 7.40 1.00
C 0.75 5.75 3 A2502-DHWVE03 5.00 9.90 1.20
2
4 A2502-DHWVE04 7.50 12.40 2.00
5 A2502-DHWVE05 10.00 14.90 2.00
6 A2502-DHWVE06 12.50 17.40 8.65
-- -- -- -- -- A
14.2
16 A2502-DHWVE16 37.50 42.40 33.65
1.5 2 A2502-DHWVF02 2.50 7.40 3.10
3 A2502-DHWVF03 5.00 9.90 3.10
3.4 4 A2502-DHWVF04 7.50 12.40 3.65
5 A2502-DHWVF05 10.00 14.90 6.15
2.5 o 0.64
A 1.6 2 6 A2502-DHWVF06 12.50 17.40 8.65
B 5.75
-- -- -- -- --
16 A2502-DHWVF16 37.50 42.40 33.65

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2502(XHB) connector 2.5mm [.098] pitch

A2502-DHWVF Poles Part No. DIM=A DIM=B DIM=C
2 A2502-DHWVH02 2.50 7.40 1.00
3 A2502-DHWVH03 5.00 9.90 1.20
C 0.75 5.75
4 A2502-DHWVH04 7.50 12.40 2.00
5 A2502-DHWVH05 10.00 14.90 2.00
6 A2502-DHWVH06 12.50 17.40 8.65
14.2 -- -- -- -- --
16 A2502-DHWVH16 37.50 42.40 33.65
1.5 2 A2502-DHWVI02 2.50 7.40 3.10
3 A2502-DHWVI03 5.00 9.90 3.10
3.4
4 A2502-DHWVI04 7.50 12.40 3.65
2.5 o 0.64 5 A2502-DHWVI05 10.00 14.90 6.15
A 1.6 2
B 5.75 6 A2502-DHWVI06 12.50 17.40 8.65
-- -- -- -- --
16 A2502-DHWVI16 37.50 42.40 33.65

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
A2502-DHWVH A2502-DHWVI

C
2 0.75 5.75 C 0.75 5.75

14.2 14.2

3.4 3.4

2.5 o 0.64 2.5 o 0.64
1.8 A 2 1.8 A 2
B 5.75 B 5.75

LIANHE ELECTRONICS CO.,LTD. 69
