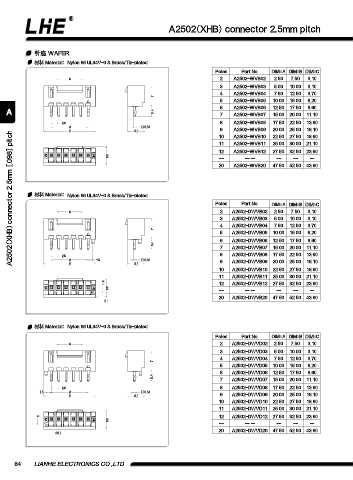

A2502(XHB) connector 2.5mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-WVB02 2.50 7.50 3.10
3 A2502-WVB03 5.00 10.00 3.10
4 A2502-WVB04 7.50 12.50 3.70
7
5 A2502-WVB05 10.00 15.00 6.20
6 A2502-WVB06 12.50 17.50 8.60
A 3.4 7 A2502-WVB07 15.00 20.00 11.10
8 A2502-WVB08 17.50 22.50 13.60
2.5
A o 0.64
B 5.8 9 A2502-WVB09 20.00 25.00 16.10
A2502(XHB) connector 2.5mm [.098] pitch
10 A2502-WVB10 22.50 27.50 18.60
11 A2502-WVB11 25.00 30.00 21.10
12 A2502-WVB12 27.50 32.50 23.60
6.5
- - - - - - - - - - - -
20 A2502-WVB20 47.50 52.50 43.60

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated

Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-DWVB02 2.50 7.50 3.10
3 A2502-DWVB03 5.00 10.00 3.10
4 A2502-DWVB04 7.50 12.50 3.70
7
5 A2502-DWVB05 10.00 15.00 6.20
6 A2502-DWVB06 12.50 17.50 8.60
3.4
7 A2502-DWVB07 15.00 20.00 11.10
8 A2502-DWVB08 17.50 22.50 13.60
2.5
A 1.6 o 0.64 9 A2502-DWVB09 20.00 25.00 16.10
B 5.8
10 A2502-DWVB10 22.50 27.50 18.60
11 A2502-DWVB11 25.00 30.00 21.10
1.8 12 A2502-DWVB12 27.50 32.50 23.60
6.5 - - - - - - - - - - - -
20 A2502-DWVB20 47.50 52.50 43.60
n1

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-DWVD02 2.50 7.50 3.10
3 A2502-DWVD03 5.00 10.00 3.10
4 A2502-DWVD04 7.50 12.50 3.70
7
5 A2502-DWVD05 10.00 15.00 6.20
6 A2502-DWVD06 12.50 17.50 8.60
3.4
7 A2502-DWVD07 15.00 20.00 11.10
8 A2502-DWVD08 17.50 22.50 13.60
2.5
1.8 A o 0.64
B 5.8 9 A2502-DWVD09 20.00 25.00 16.10
10 A2502-DWVD10 22.50 27.50 18.60
11 A2502-DWVD11 25.00 30.00 21.10
12 A2502-DWVD12 27.50 32.50 23.60
2
6.5
- - - - - - - - - - - -
20 A2502-DWVD20 47.50 52.50 43.60
n0.8
