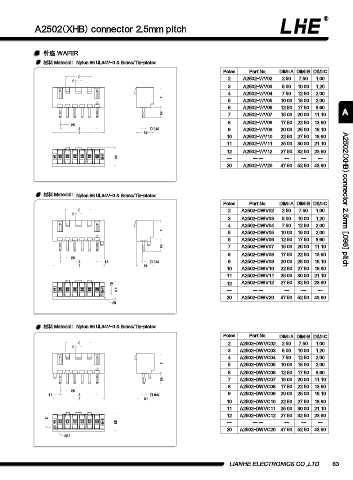

A2502(XHB) connector 2.5mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
C
2 2 A2502-WV02 2.50 7.50 1.00
3 A2502-WV03 5.00 10.00 1.20
4 A2502-WV04 7.50 12.50 2.00
7
5 A2502-WV05 10.00 15.00 2.00
6 A2502-WV06 12.50 17.50 8.60
3.4 7 A2502-WV07 15.00 20.00 11.10 A
8 A2502-WV08 17.50 22.50 13.60
2.5
A o 0.64 9 A2502-WV09 20.00 25.00 16.10
B 5.8
10 A2502-WV10 22.50 27.50 18.60
11 A2502-WV11 25.00 30.00 21.10
12 A2502-WV12 27.50 32.50 23.60
6.5 -- -- -- -- -- --
20 A2502-WV20 47.50 52.50 43.60

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2502(XHB) connector 2.5mm [.098] pitch

Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-DWV02 2.50 7.50 1.00
2
3 A2502-DWV03 5.00 10.00 1.20
4 A2502-DWV04 7.50 12.50 2.00
7
5 A2502-DWV05 10.00 15.00 2.00
6 A2502-DWV06 12.50 17.50 8.60
3.4 7 A2502-DWV07 15.00 20.00 11.10
8 A2502-DWV08 17.50 22.50 13.60
2.5
A 1.6 o 0.64 9 A2502-DWV09 20.00 25.00 16.10
B 5.8
10 A2502-DWV10 22.50 27.50 18.60
11 A2502-DWV11 25.00 30.00 21.10
1.8 12 A2502-DWV12 27.50 32.50 23.60
6.5 -- -- -- -- -- --
20 A2502-DWV20 47.50 52.50 43.60
n1

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-DWVC02 2.50 7.50 1.00
2
3 A2502-DWVC03 5.00 10.00 1.20
4 A2502-DWVC04 7.50 12.50 2.00
5 A2502-DWVC05 10.00 15.00 2.00
7
6 A2502-DWVC06 12.50 17.50 8.60
3.4 7 A2502-DWVC07 15.00 20.00 11.10
8 A2502-DWVC08 17.50 22.50 13.60
2.5
1.8 A o 0.64 9 A2502-DWVC09 20.00 25.00 16.10
B 5.8
10 A2502-DWVC10 22.50 27.50 18.60
11 A2502-DWVC11 25.00 30.00 21.10
12 A2502-DWVC12 27.50 32.50 23.60
2
6.5 -- -- -- -- -- --
20 A2502-DWVC20 47.50 52.50 43.60
n0.8

LIANHE ELECTRONICS CO.,LTD. 63
