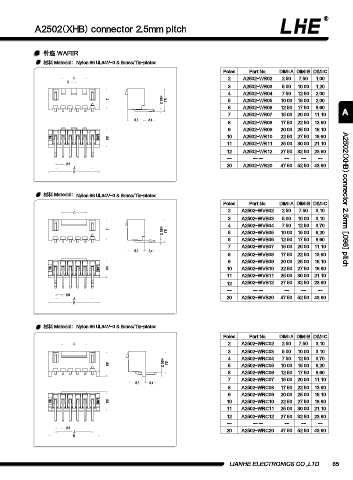

A2502(XHB) connector 2.5mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-WR02 2.50 7.50 1.00
2
3 A2502-WR03 5.00 10.00 1.20
4 A2502-WR04 7.50 12.50 2.00
0.64
7 7.8 5 A2502-WR05 10.00 15.00 2.00
o
6 A2502-WR06 12.50 17.50 8.60
7 A2502-WR07 15.00 20.00 11.10 A
5.8 3.4
8 A2502-WR08 17.50 22.50 13.60
9 A2502-WR09 20.00 25.00 16.10
6.5 10 A2502-WR10 22.50 27.50 18.60
11 A2502-WR11 25.00 30.00 21.10
12 A2502-WR12 27.50 32.50 23.60
-- -- -- -- -- --
2.5 20 A2502-WR20 47.50 52.50 43.60
A
B

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2502(XHB) connector 2.5mm [.098] pitch

Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-WVB02 2.50 7.50 3.10
3 A2502-WVB03 5.00 10.00 3.10
4 A2502-WVB04 7.50 12.50 3.70
0.64
7 7.8
o 5 A2502-WVB05 10.00 15.00 6.20
6 A2502-WVB06 12.50 17.50 8.60
7 A2502-WVB07 15.00 20.00 11.10
5.8 3.4
8 A2502-WVB08 17.50 22.50 13.60
9 A2502-WVB09 20.00 25.00 16.10
6.5 10 A2502-WVB10 22.50 27.50 18.60
11 A2502-WVB11 25.00 30.00 21.10
12 A2502-WVB12 27.50 32.50 23.60
-- -- -- -- -- --
2.5
A 20 A2502-WVB20 47.50 52.50 43.60
B

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-WRC02 2.50 7.50 3.10
3 A2502-WRC03 5.00 10.00 3.10
4 A2502-WRC04 7.50 12.50 3.70
0.64
8.6 o 7.8 5 A2502-WRC05 10.00 15.00 6.20
6 A2502-WRC06 12.50 17.50 8.60
7 A2502-WRC07 15.00 20.00 11.10
5.8 3.4
8 A2502-WRC08 17.50 22.50 13.60
9 A2502-WRC09 20.00 25.00 16.10
6.5 10 A2502-WRC10 22.50 27.50 18.60
11 A2502-WRC11 25.00 30.00 21.10
12 A2502-WRC12 27.50 32.50 23.60
-- -- -- -- -- --
2.5
A 20 A2502-WRC20 47.50 52.50 43.60
B

LIANHE ELECTRONICS CO.,LTD. 65
