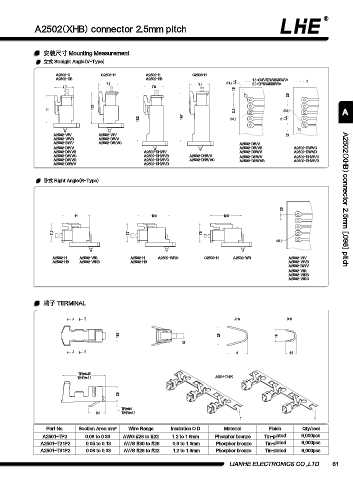

A2502(XHB) connector 2.5mm pitch

安装尺寸 Mounting Measurement
立式 Straight Angle(V-Type)

A2502-H C2508-H A2502-H C2508-H
A2502-HB A2502-HB + 0.1 1.8 <DWV&DWVB&DBWV> 2
7.7 7.8 n 1.2 - 0 2.0 <DHWV&DHWVB>
7.7 7.8
1.6
2.5
12.5
11 2.5 n0.9 A
18.2 19.7 n0.9 n 1 - 0 + 0.1

A2502-WV A2502-WV 1.7
A2502-WVB A2502-DWV
A2502-BWV A2502-DWVC A2502-DWV
A2502-DWV A2502-DWVB A2502-DWVC
A2502-DWVB A2502-DHWV A2502-DBWV A2502-DWVD
A2502-DWVC A2502-DHWVB A2502-DHWV A2502-DHWV A2502-DHWVC
A2502-DWVD A2502-DHWVC A2502-DHWVC A2502-DHWVB A2502-DHWVD
A2502-DBWV A2502-DHWVD

卧式 Right Angle(R-Type)

2.5 A2502(XHB) connector 2.5mm [.098] pitch
11 12.6 12.5

7.7 7.7 7.8
n0.9

A2502-H A2502-WR A2502-H A2502-WRC C2508-H A2502-WR A2502-WV
A2502-HB A2502-WRB A2502-HB A2502-WVB
A2502-BWV
A2502-WR
A2502-WRB
A2502-WRC

端子 TERMINAL

A B A-A B-B

1.85 2.9 1.8
0.7
A B 3 1.5

TP2=6.45
T21P2= 6.3 A2501-T31P2

2.3

TP2=0.9
2.4 T21P2= 0.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2501-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 6,000pcs
A2501-T21P2 0.05 to 0.13 AWG #30 to #26 0.9 to 1.3mm Phosphor bronze Tin-plated 6,000pcs
A2501-T31P2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 6,000pcs

LIANHE ELECTRONICS CO.,LTD. 61
