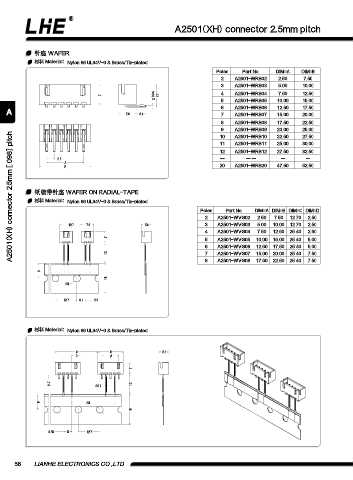

A2501(XH) connector 2.5mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A2501-WRB02 2.50 7.50
3 A2501-WRB03 5.00 10.00
0.64 4 A2501-WRB04 7.50 12.50
7 7.7
o 5 A2501-WRB05 10.00 15.00
6 A2501-WRB06 12.50 17.50
A 5.8 3.4 7 A2501-WRB07 15.00 20.00
8 A2501-WRB08 17.50 22.50
9 A2501-WRB09 20.00 25.00
A2501(XH) connector 2.5mm [.098] pitch
10 A2501-WRB10 22.50 27.50
11 A2501-WRB11 25.00 30.00
12 A2501-WRB12 27.50 32.50
2.5 -- -- -- -- --
A
B 20 A2501-WRB20 47.50 52.50

纸编带针座 WAFER ON RADIAL-TAPE
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C DIM=D
2 A2501-WVG02 2.50 7.50 12.70 2.50
12.7 7.5 5.8 3 A2501-WVG03 5.00 10.00 12.70 2.50
4 A2501-WVG04 7.50 12.50 25.40 2.50
5 A2501-WVG05 10.00 15.00 25.40 5.00
7
6 A2501-WVG06 12.50 17.50 25.40 5.00
12 7 A2501-WVG07 15.00 20.00 25.40 7.50
8 A2501-WVG08 17.50 22.50 25.40 7.50

9
18
n4

12.7 5.1 2.5

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated

C B 5.8
D A
7

2.7 n0.7 12

n4
9
18

3.85 5 12.7

56 LIANHE ELECTRONICS CO.,LTD.
