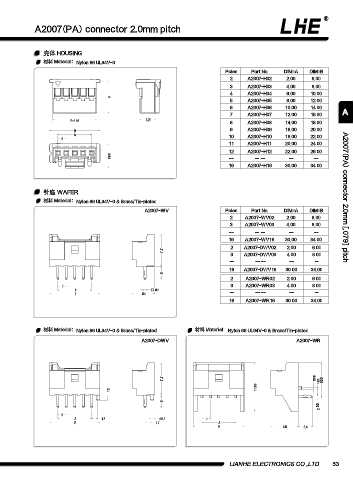

A2007(PA) connector 2.0mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 A2007-H02 2.00 6.00
3 A2007-H03 4.00 8.00
4 A2007-H04 6.00 10.00
8
5 A2007-H05 8.00 12.00
6 A2007-H06 10.00 14.00
7 A2007-H07 12.00 16.00 A
B-1.65 3.75
8 A2007-H08 14.00 18.00
9 A2007-H09 16.00 20.00
B
A
2 10 A2007-H10 18.00 22.00
11 A2007-H11 20.00 24.00
12 A2007-H12 22.00 26.00
5.85 -- -- -- -- --
16 A2007-H16 30.00 34.00

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2007(PA) connector 2.0mm [.079] pitch
A2007-WV Poles Part No. DIM=A DIM=B
2 A2007-WV02 2.00 6.00
3 A2007-WV03 4.00 8.00
-- -- -- -- --
16 A2007-WV16 30.00 34.00
2 A2007-DWV02 2.00 6.00
7.7
3 A2007-DWV03 4.00 8.00
-- -- -- -- --
16 A2007-DWV16 30.00 34.00
3
2 A2007-WR02 2.00 6.00
2 3 A2007-WR03 4.00 8.00
A o 0.5
B 5.3 -- -- -- -- --
16 A2007-WR16 30.00 34.00

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
A2007-DWV A2007-WR

7.7 n0.8 1.85 8.35
11.65
1.2
3
0.5
o
2
A 1.5 n0.8 2
B 1.7 A
B 6.5 3.4

LIANHE ELECTRONICS CO.,LTD. 53
