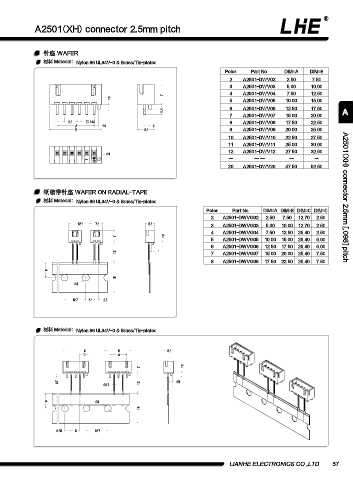

A2501(XH) connector 2.5mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A2501-DWV02 2.50 7.50
3 A2501-DWV03 5.00 10.00
4 A2501-DWV04 7.50 12.50
7
1.5 5 A2501-DWV05 10.00 15.00
6 A2501-DWV06 12.50 17.50
3.4 A
7 A2501-DWV07 15.00 20.00
2.5 o 0.64 8 A2501-DWV08 17.50 22.50
A 1.6 2
B 5.8 9 A2501-DWV09 20.00 25.00
10 A2501-DWV10 22.50 27.50
11 A2501-DWV11 25.00 30.00
12 A2501-DWV12 27.50 32.50
n1
-- -- -- -- --
20 A2501-DWV20 47.50 52.50

纸编带针座 WAFER ON RADIAL-TAPE
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2501(XH) connector 2.5mm [.098] pitch
Poles Part No. DIM=A DIM=B DIM=C DIM=D
2 A2501-DWVG02 2.50 7.50 12.70 2.50
12.7 7.5 5.8 3 A2501-DWVG03 5.00 10.00 12.70 2.50
4 A2501-DWVG04 7.50 12.50 25.40 2.50
1.5
7
5 A2501-DWVG05 10.00 15.00 25.40 5.00
6 A2501-DWVG06 12.50 17.50 25.40 5.00
12 1 7 A2501-DWVG07 15.00 20.00 25.40 7.50
8 A2501-DWVG08 17.50 22.50 25.40 7.50

9
18
n4

12.7 5.1 2.5

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated

C B 5.8
D A

1.5
7
2.7 n0.7 12 n 1

9 n4
18

3.85 5 12.7

LIANHE ELECTRONICS CO.,LTD. 57
