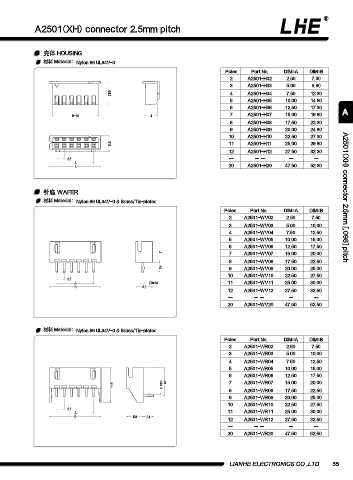

A2501(XH) connector 2.5mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 A2501-H02 2.50 7.30
3 A2501-H03 5.00 9.80
7.95 4 A2501-H04 7.50 12.30
5 A2501-H05 10.00 14.80
6 A2501-H06 12.50 17.30
B-1.6 4 7 A2501-H07 15.00 19.80 A
8 A2501-H08 17.50 22.30
9 A2501-H09 20.00 24.80
10 A2501-H10 22.50 27.30
5.6 11 A2501-H11 25.00 29.80
12 A2501-H12 27.50 32.30
2.5 -- -- -- -- --
A
B 20 A2501-H20 47.50 52.30

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2501(XH) connector 2.5mm [.098] pitch
Poles Part No. DIM=A DIM=B
2 A2501-WV02 2.50 7.50
3 A2501-WV03 5.00 10.00
4 A2501-WV04 7.50 12.50
5 A2501-WV05 10.00 15.00
6 A2501-WV06 12.50 17.50
7 7 A2501-WV07 15.00 20.00
8 A2501-WV08 17.50 22.50
3.4 9 A2501-WV09 20.00 25.00
10 A2501-WV10 22.50 27.50
2.5
A o 0.64 11 A2501-WV11 25.00 30.00
B 5.8
12 A2501-WV12 27.50 32.50
-- -- -- -- --
20 A2501-WV20 47.50 52.50

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A2501-WR02 2.50 7.50
3 A2501-WR03 5.00 10.00
4 A2501-WR04 7.50 12.50
5 A2501-WR05 10.00 15.00
6 A2501-WR06 12.50 17.50
11.6 0.64 o 9.7 7 A2501-WR07 15.00 20.00
8 A2501-WR08 17.50 22.50
9 A2501-WR09 20.00 25.00
10 A2501-WR10 22.50 27.50
2.5
A 11 A2501-WR11 25.00 30.00
B 5.8 3.4
12 A2501-WR12 27.50 32.50
-- -- -- -- --
20 A2501-WR20 47.50 52.50
