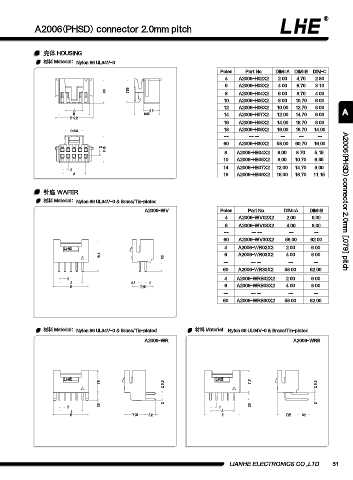

A2006(PHSD) connector 2.0mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B DIM-C
4 A2006-H02X2 2.00 4.70 2.80
6 A2006-H03X2 4.00 6.70 3.10
8.3 7.86 8 A2006-H04X2 6.00 8.70 4.00
10 A2006-H05X2 8.00 10.70 6.00
12 A2006-H06X2 10.00 12.70 8.00
C 5.5 A
B 8.65 14 A2006-H07X2 12.00 14.70 6.00
B+2.2
16 A2006-H08X2 14.00 16.70 8.00
C+0.3 18 A2006-H09X2 16.00 18.70 14.00
-- -- -- -- -- --
60 A2006-H30X2 58.00 60.70 16.00
2
9.25 8 A2006-HB04X2 6.00 8.70 5.15
10 A2006-HB05X2 8.00 10.70 6.35
14 A2006-HB07X2 12.00 14.70 9.00
2
A 18 A2006-HB09X2 16.00 18.70 11.15

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2006(PHSD) connector 2.0mm [.079] pitch
A2006-WV Poles Part No. DIM=A DIM=B
4 A2006-WV02X2 2.00 6.00
6 A2006-WV03X2 4.00 8.00
-- -- -- -- --
60 A2006-WV30X2 58.00 62.00
4 A2006-WR02X2 2.00 6.00
10.8 3.2 6 A2006-WR03X2 4.00 8.00
-- -- -- -- --
60 A2006-WR30X2 58.00 62.00
2 4 A2006-WRB02X2 2.00 6.00
A 0.5 2
B 7.25 6 A2006-WRB03X2 4.00 8.00
-- -- -- -- --
60 A2006-WRB30X2 58.00 62.00

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
A2006-WR A2006-WRB

7.6 0.5 7.6 0.5
o o

2.5 2 2.5 2
2 2
A A
B 7.25 3.2 B 7.25 3.2
