P. 78
}

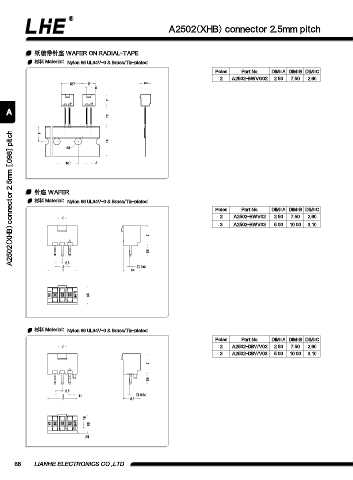

A2502(XHB) connector 2.5mm pitch
纸编带针座 WAFER ON RADIAL-TAPE
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
2 A2502-BWVG02 2.50 7.50 2.60
12.7 B 6.5
C
7
A
12
A2502(XHB) connector 2.5mm [.098] pitch
9
18
n4
12.7 A
针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-BWV02 2.50 7.50 2.60
3 A2502-BWV03 5.00 10.00 3.10
7
3.4
2.5
A o 0.64
B 5.8
6.5
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
C 2 A2502-DBWV02 2.50 7.50 2.60
3 A2502-DBWV03 5.00 10.00 3.10
7
3.4
2.5
A 1.6 o 0.64
B 5.8
1.8
6.5
n1
66 LIANHE ELECTRONICS CO.,LTD.
