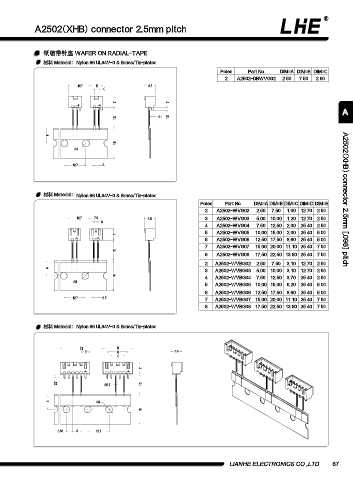

A2502(XHB) connector 2.5mm pitch

纸编带针座 WAFER ON RADIAL-TAPE
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B DIM=C
2 A2502-DBWVG02 2.50 7.50 2.60
12.7 B 6.5
C
7 7
A
n 1
12 1.5

9
18
n4

12.7 A

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2502(XHB) connector 2.5mm [.098] pitch

Poles Part No. DIM=A DIM=B DIM=C DIM=D DIM=E
2 A2502-WVG02 2.50 7.50 1.00 12.70 2.50
12.7 7.5 6.5 3 A2502-WVG03 5.00 10.00 1.20 12.70 2.50
C
4 A2502-WVG04 7.50 12.50 2.00 25.40 2.50
5 A2502-WVG05 10.00 15.00 2.00 25.40 5.00
7
6 A2502-WVG06 12.50 17.50 8.60 25.40 5.00
7 A2502-WVG07 15.00 20.00 11.10 25.40 7.50
12
8 A2502-WVG08 17.50 22.50 13.60 25.40 7.50
2 A2502-WVBG02 2.50 7.50 3.10 12.70 2.50
9
3 A2502-WVBG03 5.00 10.00 3.10 12.70 2.50
18 4 A2502-WVBG04 7.50 12.50 3.70 25.40 2.50
n4
5 A2502-WVBG05 10.00 15.00 6.20 25.40 5.00
6 A2502-WVBG06 12.50 17.50 8.60 25.40 5.00
12.7 2.5
7 A2502-WVBG07 15.00 20.00 11.10 25.40 7.50
8 A2502-WVBG08 17.50 22.50 13.60 25.40 7.50

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated

D B
E A 6.5
C
7

2.7 n0.7 12

9 n4
18

3.85 5 12.7

LIANHE ELECTRONICS CO.,LTD. 67
