P. 116
}

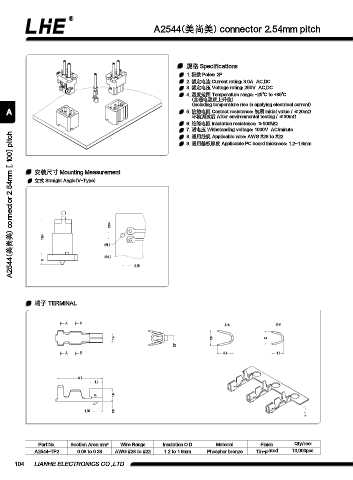

A2544(美尚美) connector 2.54mm pitch
规格 Specifications
1. 极数 Poles: 2P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥500MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
A2544(美尚美) connector 2.54mm [.100] pitch
8. 适用线规 Applicable wire: AWG #28 to #22
9. 适用基板厚度 Applicable PC board thickness: 1.2~1.6mm
安装尺寸 Mounting Measurement
立式 Straight Angle(V-Type)
2.54
10.4
n1.1
n0.9
3
2.35
端子 TERMINAL
A B A-A B-B
1.4 2.3 2
0.7
A B 2.4 1.8
6.7
1.9
1.9
1.35 0.5
Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2544-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs
104 LIANHE ELECTRONICS CO.,LTD.
