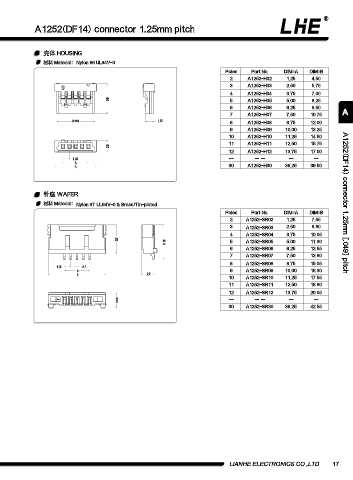

A1252(DF14) connector 1.25mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 A1252-H02 1.25 4.50
3 A1252-H03 2.50 5.75
4 A1252-H04 3.75 7.00
5.9 5 A1252-H05 5.00 8.25
6 A1252-H06 6.25 9.50
7 A1252-H07 7.50 10.75 A
B-0.8 1.55 8 A1252-H08 8.75 12.00
9 A1252-H09 10.00 13.25
10 A1252-H10 11.25 14.50
11 A1252-H11 12.50 15.75
2.3
12 A1252-H12 13.75 17.00
1.25 -- -- -- -- --
A
B 30 A1252-H30 36.25 39.50

针座 WAFER
材料 Material：Nylon 9T UL94V-0 & Brass/Tin-plated A1252(DF14) connector 1.25mm [.049] pitch

Poles Part No. DIM=A DIM=B
2 A1252-SR02 1.25 7.55
3 A1252-SR03 2.50 8.80
4 A1252-SR04 3.75 10.05
5.7
6.85 5 A1252-SR05 5.00 11.30
6 A1252-SR06 6.25 12.55
7 A1252-SR07 7.50 13.80
8 A1252-SR08 8.75 15.05
1.25 0.3
A 9 A1252-SR09 10.00 16.30
B 2.5
10 A1252-SR10 11.25 17.55
11 A1252-SR11 12.50 18.80
12 A1252-SR12 13.75 20.05
3.08 -- -- -- -- --
30 A1252-SR30 36.25 42.55

LIANHE ELECTRONICS CO.,LTD. 17
