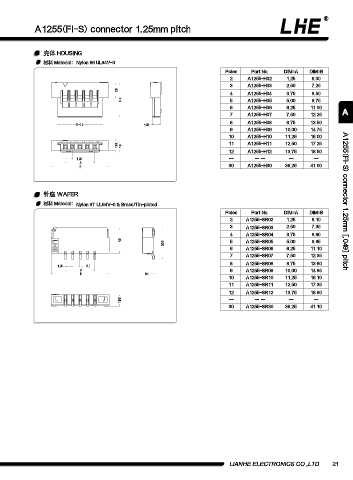

A1255(FI-S) connector 1.25mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 A1255-H02 1.25 6.00
3 A1255-H03 2.50 7.25
2.6
4 A1255-H04 3.75 8.50
5.9 5 A1255-H05 5.00 9.75
6 A1255-H06 6.25 11.00
7 A1255-H07 7.50 12.25 A
8 A1255-H08 8.75 13.50
B-2.2 1.36
9 A1255-H09 10.00 14.75
10 A1255-H10 11.25 16.00
1.66 1.9 11 A1255-H11 12.50 17.25
12 A1255-H12 13.75 18.50
1.25 -- -- -- -- --
A
B 30 A1255-H30 36.25 41.00

针座 WAFER
材料 Material：Nylon 9T UL94V-0 & Brass/Tin-plated A1255(FI-S) connector 1.25mm [.049] pitch

Poles Part No. DIM=A DIM=B
2 A1255-SR02 1.25 6.10
3 A1255-SR03 2.50 7.35
4 A1255-SR04 3.75 8.60
4.3 5 A1255-SR05 5.00 9.85
5.35
6 A1255-SR06 6.25 11.10
7 A1255-SR07 7.50 12.35
8 A1255-SR08 8.75 13.60
1.25 0.3
A 9 A1255-SR09 10.00 14.85
B 0.3
10 A1255-SR10 11.25 16.10
11 A1255-SR11 12.50 17.35
12 A1255-SR12 13.75 18.60
1.95 -- -- -- -- --
30 A1255-SR30 36.25 41.10

LIANHE ELECTRONICS CO.,LTD. 21
