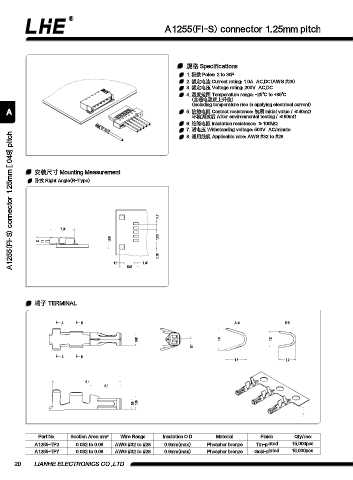

A1255(FI-S) connector 1.25mm pitch

规格 Specifications
1. 极数 Poles: 2 to 30P
2. 额定电流 Current rating: 1.0A AC,DC(AWG #28)
3. 额定电压 Voltage rating: 200V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤40mΩ
环境测试后 After environmental testing / ≤60mΩ
6. 绝缘电阻 Insulation resistance: ≥100MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
A1255(FI-S) connector 1.25mm [.049] pitch
8. 适用线规 Applicable wire: AWG #32 to #28

安装尺寸 Mounting Measurement
卧式 Right Angle(R-Type)

0.7

7.25
1.35 1.25
2
2.23
1.6 1.45
5.65

端子 TERMINAL

A B A-A B-B

0.92 1.6 1.2
0.1
A B
1.5 1.2

5.1
2.3

0.8 1.05

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A1255-TP2 0.032 to 0.08 AWG #32 to #28 0.9mm(max) Phosphor bronze Tin-plated 15,000pcs
A1255-TP7 0.032 to 0.08 AWG #32 to #28 0.9mm(max) Phosphor bronze Gold-plated 15,000pcs
