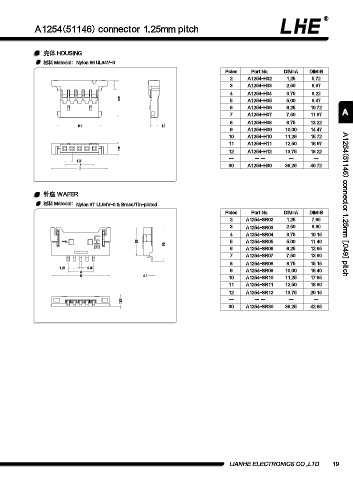

A1254(51146) connector 1.25mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 A1254-H02 1.25 5.72
3 A1254-H03 2.50 6.97
1
4 A1254-H04 3.75 8.22
6.25 5 A1254-H05 5.00 9.47
6 A1254-H06 6.25 10.72
7 A1254-H07 7.50 11.97 A
8 A1254-H08 8.75 13.22
B-2 1.3
9 A1254-H09 10.00 14.47
10 A1254-H10 11.25 15.72
11 A1254-H11 12.50 16.97
1.82 12 A1254-H12 13.75 18.22
-- -- -- -- --
1.25
A 30 A1254-H30 36.25 40.72
B

针座 WAFER
材料 Material：Nylon 9T UL94V-0 & Brass/Tin-plated A1254(51146) connector 1.25mm [.049] pitch

Poles Part No. DIM=A DIM=B
2 A1254-SR02 1.25 7.65
3 A1254-SR03 2.50 8.90
4 A1254-SR04 3.75 10.15
5.5 5 A1254-SR05 5.00 11.40
6.6
6 A1254-SR06 6.25 12.65
7 A1254-SR07 7.50 13.90
8 A1254-SR08 8.75 15.15
1.25 0.45
A 9 A1254-SR09 10.00 16.40
B 0.3
10 A1254-SR10 11.25 17.65
11 A1254-SR11 12.50 18.90
12 A1254-SR12 13.75 20.15
1.85 -- -- -- -- --
30 A1254-SR30 36.25 42.65
