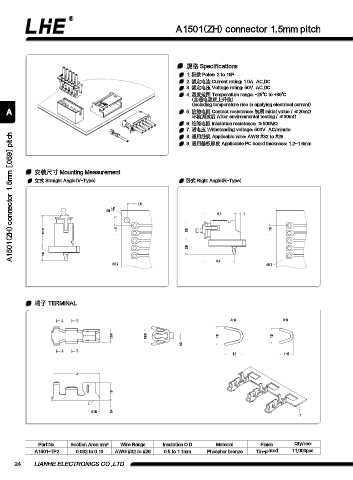

                                                            A1501(ZH) connector 1.5mm pitch






                                                                规格 Specifications
                                                                1. 极数 Poles: 2 to 16P
                                                                2. 额定电流 Current rating: 1.0A  AC,DC
                                                                3. 额定电压 Voltage rating: 50V  AC,DC
                                                                4. 温度范围 Temperature range: -25℃ to +85℃
                                                                    (含通电温度上升值)
                                                                    (Including temperature rise in applying electrical current)
   A                                                            5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
                                                                    环境测试后 After environmental testing / ≤30mΩ
                                                                6. 绝缘电阻 Insulation resistance: ≥500MΩ
                                                                7. 耐电压 Withstanding voltage: 500V  AC/minute
     A1501(ZH) connector 1.5mm [.059] pitch
                                                                8. 适用线规 Applicable wire: AWG #32 to #26
                                                                9. 适用基板厚度 Applicable PC board thickness: 1.2~1.6mm




             安装尺寸 Mounting Measurement
             立式 Straight Angle(V-Type)                          卧式 Right Angle(R-Type)


                                               1.5
                                      +  0.2
                                     n 1 - 0
                                                                          6.6      1
                                        1
                6.15                    1.5                     3.8                         1.5


                                                                2.9
                2.9
                                                                          6.4
                                       n0.7                                                n0.7





             端子 TERMINAL


                      A    B                                                   A-A              B-B

                                       1.05       0.83                    1.6                1.3
                                                              0.5
                      A    B
                                                                               1.6              1.15

                          4


                                       1.5


                                0.95   0.4





              Part No.   Section Area mm²  Wire Range   Insulation O.D    Material       Finish     Qty/reel
            A1501-TP2     0.032 to 0.13  AWG #32 to #26  0.5 to 1.1mm  Phosphor bronze  Tin-plated  11,000pcs
