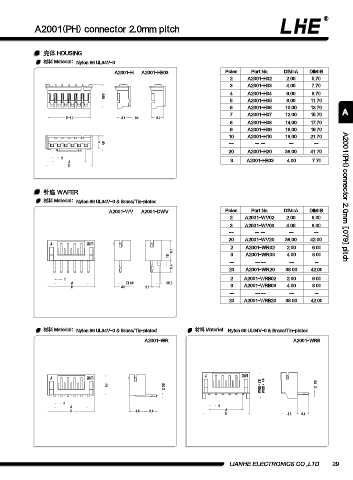

A2001(PH) connector 2.0mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

A2001-H A2001-HB03 Poles Part No. DIM=A DIM=B
2 A2001-H02 2.00 5.70
3 A2001-H03 4.00 7.70
4 A2001-H04 6.00 9.70
6.95
5 A2001-H05 8.00 11.70
6 A2001-H06 10.00 13.70
7 A2001-H07 12.00 15.70 A
B-1.2 3.4 0.3 3.4
8 A2001-H08 14.00 17.70
9 A2001-H09 16.00 19.70
10 A2001-H10 18.00 21.70
4 4.6 -- -- -- -- --
20 A2001-H20 38.00 41.70
2
A 3 A2001-HB03 4.00 7.70
B

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2001(PH) connector 2.0mm [.079] pitch
A2001-WV A2001-DWV Poles Part No. DIM=A DIM=B
2 A2001-WV02 2.00 6.00
3 A2001-WV03 4.00 8.00
-- -- -- -- --
20 A2001-WV20 38.00 42.00
2 A2001-WR02 2.00 6.00
6.1
1.5 3 A2001-WR03 4.00 8.00
-- -- -- -- --
3.4
20 A2001-WR20 38.00 42.00
2 2 A2001-WRB02 2.00 6.00
A o 0.5 Ø 0.9
B 4.8 2.3 3 A2001-WRB03 4.00 8.00
-- -- -- -- --
20 A2001-WRB20 38.00 42.00

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
A2001-WR A2001-WRB

7.8 0.5
6.1 0.5 WRC = 9.6 o
o WRB =
2
A 2 A
B 4.8 3.4
B 4.8 3.4

LIANHE ELECTRONICS CO.,LTD. 29
