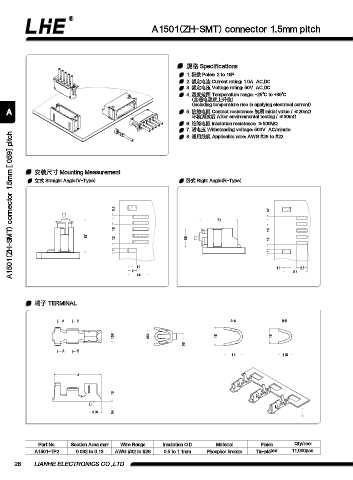

A1501(ZH-SMT) connector 1.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 1.0A AC,DC
3. 额定电压 Voltage rating: 50V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥500MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
A1501(ZH-SMT) connector 1.5mm [.059] pitch
8. 适用线规 Applicable wire: AWG #28 to #22

安装尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

0.7 0.7
7.6
1.5 1.5
6.7
1.2 3.8 1.2
1
1

1.2 1.9 2.5
2 5.8
4.8

端子 TERMINAL

A B A-A B-B

1.05 0.83 1.6 1.3
0.5
A B
1.6 1.15

4

1.5

0.95 0.4

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A1501-TP2 0.032 to 0.13 AWG #32 to #26 0.5 to 1.1mm Phosphor bronze Tin-plated 11,000pcs

26 LIANHE ELECTRONICS CO.,LTD.
