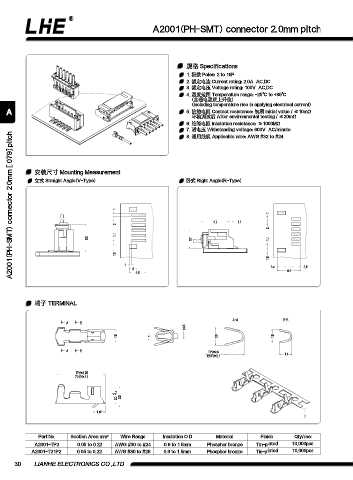

A2001(PH-SMT) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 100V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 800V AC/minute
A2001(PH-SMT) connector 2.0mm [.079] pitch
8. 适用线规 Applicable wire: AWG #32 to #24

安装尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

1
1
8.2 1.6
2
2
1.1
8.2 5.7 1.1

1.5
1.5
1 3.4 3.5
3 9.2
6.5

端子 TERMINAL

A-A B-B
A B
0.65
1.5 1 2.5 1.6

A B
TP2=2.6
T21P2= 2.5 1.4

TP2= 5.75
T21P2=5.5

2.1 - 0.1 2.5
0
+
1.45

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2001-TP2 0.05 to 0.22 AWG #30 to #24 0.9 to 1.5mm Phosphor bronze Tin-plated 10,000pcs
A2001-T21P2 0.05 to 0.22 AWG #30 to #26 0.9 to 1.5mm Phosphor bronze Tin-plated 10,000pcs

30 LIANHE ELECTRONICS CO.,LTD.
