P. 47
}

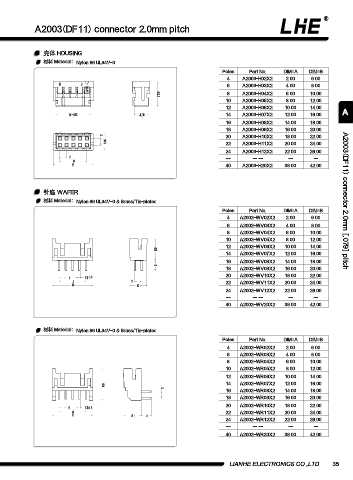

A2003(DF11) connector 2.0mm pitch
壳体 HOUSING
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
4 A2003-H02X2 2.00 6.00
6 A2003-H03X2 4.00 8.00
7.55 8 A2003-H04X2 6.00 10.00
10 A2003-H05X2 8.00 12.00
12 A2003-H06X2 10.00 14.00
B-1.55 4.05 14 A2003-H07X2 12.00 16.00 A
16 A2003-H08X2 14.00 18.00
18 A2003-H09X2 16.00 20.00
20 A2003-H10X2 18.00 22.00
2
5.05 22 A2003-H11X2 20.00 24.00
24 A2003-H12X2 22.00 26.00
2 -- -- -- -- --
A
B 40 A2003-H20X2 38.00 42.00
针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A2003(DF11) connector 2.0mm [.079] pitch
Poles Part No. DIM=A DIM=B
4 A2002-WV02X2 2.00 6.00
6 A2002-WV03X2 4.00 8.00
8 A2002-WV04X2 6.00 10.00
10 A2002-WV05X2 8.00 12.00
12 A2002-WV06X2 10.00 14.00
6.5
14 A2002-WV07X2 12.00 16.00
16 A2002-WV08X2 14.00 18.00
3
18 A2002-WV09X2 16.00 20.00
20 A2002-WV10X2 18.00 22.00
2 o 0.5
A 2 22 A2002-WV11X2 20.00 24.00
B 5.1
24 A2002-WV12X2 22.00 26.00
-- -- -- -- --
40 A2002-WV20X2 38.00 42.00
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
4 A2002-WR02X2 2.00 6.00
6 A2002-WR03X2 4.00 8.00
8 A2002-WR04X2 6.00 10.00
10 A2002-WR05X2 8.00 12.00
12 A2002-WR06X2 10.00 14.00
14 A2002-WR07X2 12.00 16.00
9.5
2
16 A2002-WR08X2 14.00 18.00
18 A2002-WR09X2 16.00 20.00
20 A2002-WR10X2 18.00 22.00
2 o 0.5
A 22 A2002-WR11X2 20.00 24.00
B 5.1 3
24 A2002-WR12X2 22.00 26.00
-- -- -- -- --
40 A2002-WR20X2 38.00 42.00
LIANHE ELECTRONICS CO.,LTD. 35
