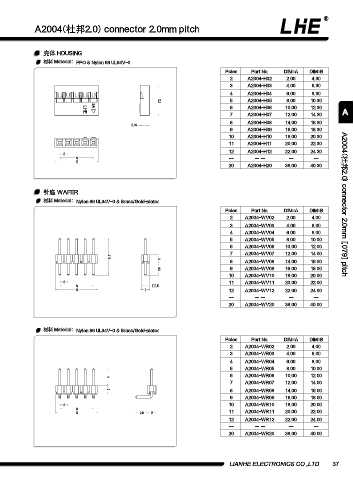

A2004(杜邦2.0) connector 2.0mm pitch

壳体 HOUSING
材料 Material：PPO & Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2004-H02 2.00 4.30
3 A2004-H03 4.00 6.30
4 A2004-H04 6.00 8.30
7.2 5 A2004-H05 8.00 10.30
6 A2004-H06 10.00 12.30
7 A2004-H07 12.00 14.30 A
8 A2004-H08 14.00 16.30
2.16
9 A2004-H09 16.00 18.30
10 A2004-H10 18.00 20.30
11 A2004-H11 20.00 22.30
12 A2004-H12 22.00 24.30
2
A -- -- -- -- --
B
20 A2004-H20 38.00 40.30

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Gold-plated A2004(杜邦2.0) connector 2.0mm [.079] pitch
Poles Part No. DIM=A DIM=B
2 A2004-WV02 2.00 4.00
3 A2004-WV03 4.00 6.00
4 A2004-WV04 6.00 8.00
5 A2004-WV05 8.00 10.00
6 A2004-WV06 10.00 12.00
7 A2004-WV07 12.00 14.00
8.7
2
8 A2004-WV08 14.00 16.00
2.8 9 A2004-WV09 16.00 18.00
10 A2004-WV10 18.00 20.00
2 11 A2004-WV11 20.00 22.00
A o 0.5
B 2 12 A2004-WV12 22.00 24.00
-- -- -- -- --
20 A2004-WV20 38.00 40.00

材料 Material：Nylon 66 UL94V-0 & Brass/Gold-plated
Poles Part No. DIM=A DIM=B
2 A2004-WR02 2.00 4.00
3 A2004-WR03 4.00 6.00
4 A2004-WR04 6.00 8.00
5 A2004-WR05 8.00 10.00
6 A2004-WR06 10.00 12.00
4
7 A2004-WR07 12.00 14.00
2 8 A2004-WR08 14.00 16.00
9 A2004-WR09 16.00 18.00
2 10 A2004-WR10 18.00 20.00
A
B 2.8 2 11 A2004-WR11 20.00 22.00
12 A2004-WR12 22.00 24.00
-- -- -- -- --
20 A2004-WR20 38.00 40.00

LIANHE ELECTRONICS CO.,LTD. 37
