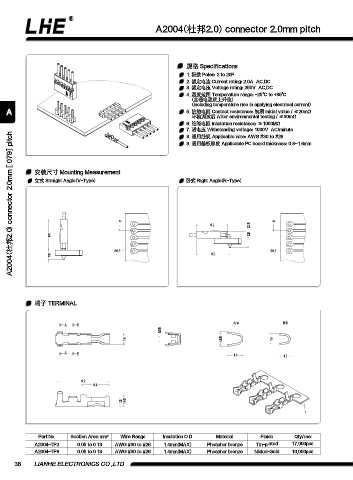

A2004(杜邦2.0) connector 2.0mm pitch
规格 Specifications
1. 极数 Poles: 2 to 20P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
A2004(杜邦2.0) connector 2.0mm [.079] pitch
8. 适用线规 Applicable wire: AWG #30 to #26
9. 适用基板厚度 Applicable PC board thickness: 0.8~1.6mm
安装尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)
2 2
9.2 2.16
9.2 2.8
n0.8 n0.8
2.8 9.9
端子 TERMINAL
A-A B-B
A B
0.35
1.4 1.65 1.4
A B 1.8 1.3
6.2
3.4
1.3 1.45
Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2004-TP2 0.05 to 0.13 AWG #30 to #26 1.4mm(MAX) Phosphor bronze Tin-plated 17,000pcs
A2004-TP8 0.05 to 0.13 AWG #30 to #26 1.4mm(MAX) Phosphor bronze Nickel-Gold 10,000pcs
