P. 44

}

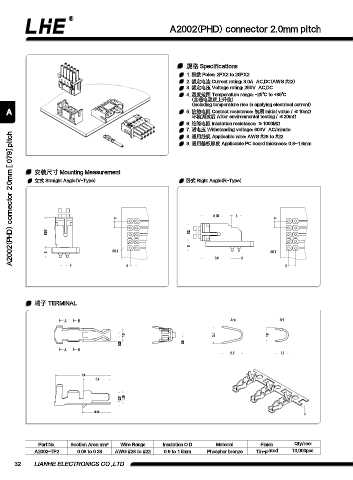

                                                          A2002(PHD) connector 2.0mm pitch






                                                                规格 Specifications
                                                                1. 极数 Poles: 2PX2 to 20PX2
                                                                2. 额定电流 Current rating: 3.0A  AC,DC(AWG #22)
                                                                3. 额定电压 Voltage rating: 250V  AC,DC
                                                                4. 温度范围 Temperature range: -25℃ to +85℃
                                                                    (含通电温度上升值)
                                                                    (Including temperature rise in applying electrical current)
   A                                                            5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
                                                                    环境测试后 After environmental testing / ≤20mΩ
                                                                6. 绝缘电阻 Insulation resistance: ≥1000MΩ
                                                                7. 耐电压 Withstanding voltage: 800V  AC/minute
     A2002(PHD) connector 2.0mm [.079] pitch
                                                                8. 适用线规 Applicable wire: AWG #28 to #22
                                                                9. 适用基板厚度 Applicable PC board thickness: 0.8~1.6mm




             安装尺寸 Mounting Measurement
             立式 Straight Angle(V-Type)                          卧式 Right Angle(R-Type)





                                                                         9.05   3
                                        2                                                     2
                 9.05                                            5.2


                                                                 3
                                       n0.7                                                 n0.7
                 3
                                                                         9.3      2
                        2                  2                                                     2





             端子 TERMINAL


                       A   B                                                  A-A              B-B

                                           1.5                           2.1               1.6
                                         0.25                  0.6
                       A   B
                                                                              2.5              1.6



                            6.5
                                 3.2

                                         1.25  1.55

                                3.35





              Part No.   Section Area mm²  Wire Range   Insulation O.D    Material       Finish     Qty/reel
            A2002-TP2      0.08 to 0.33  AWG #28 to #22  0.9 to 1.5mm  Phosphor bronze  Tin-plated  10,000pcs

      32    LIANHE ELECTRONICS CO.,LTD.
